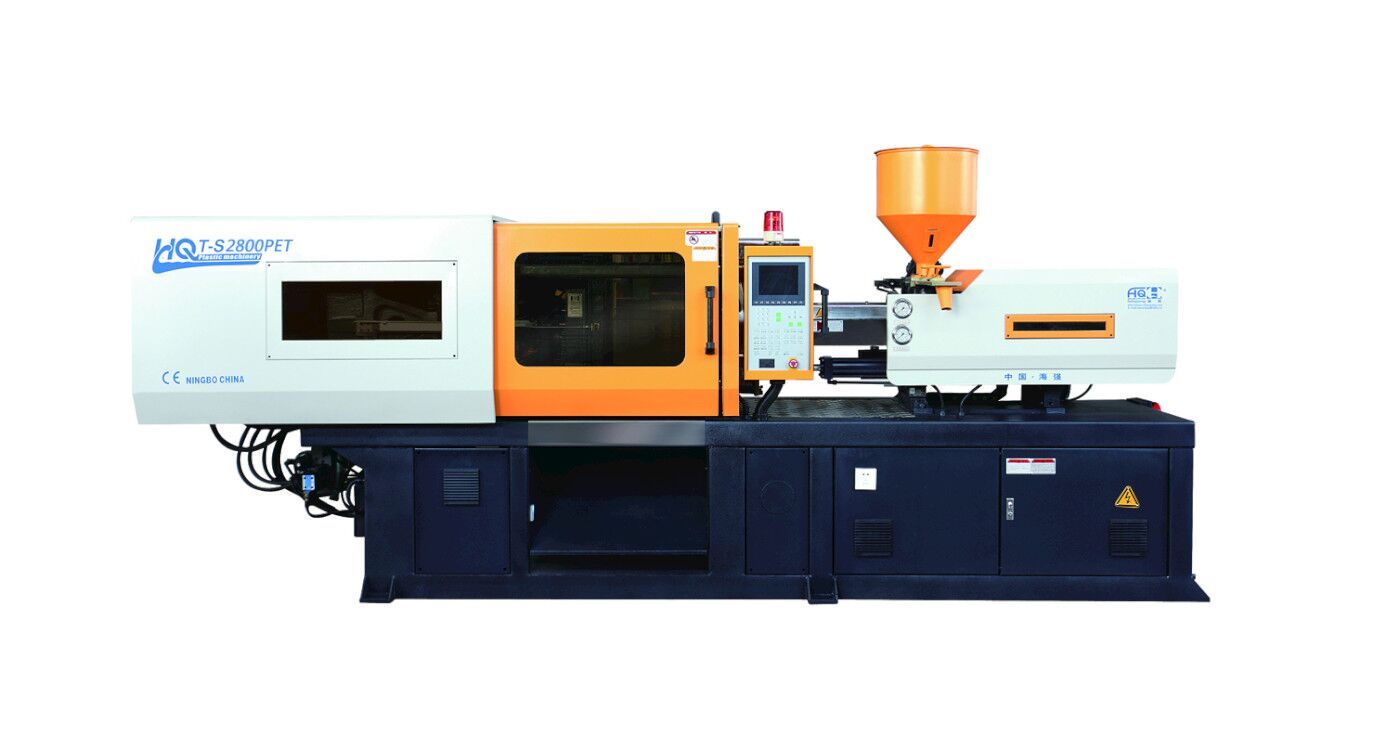

HQT-2800 PET injection molding machine

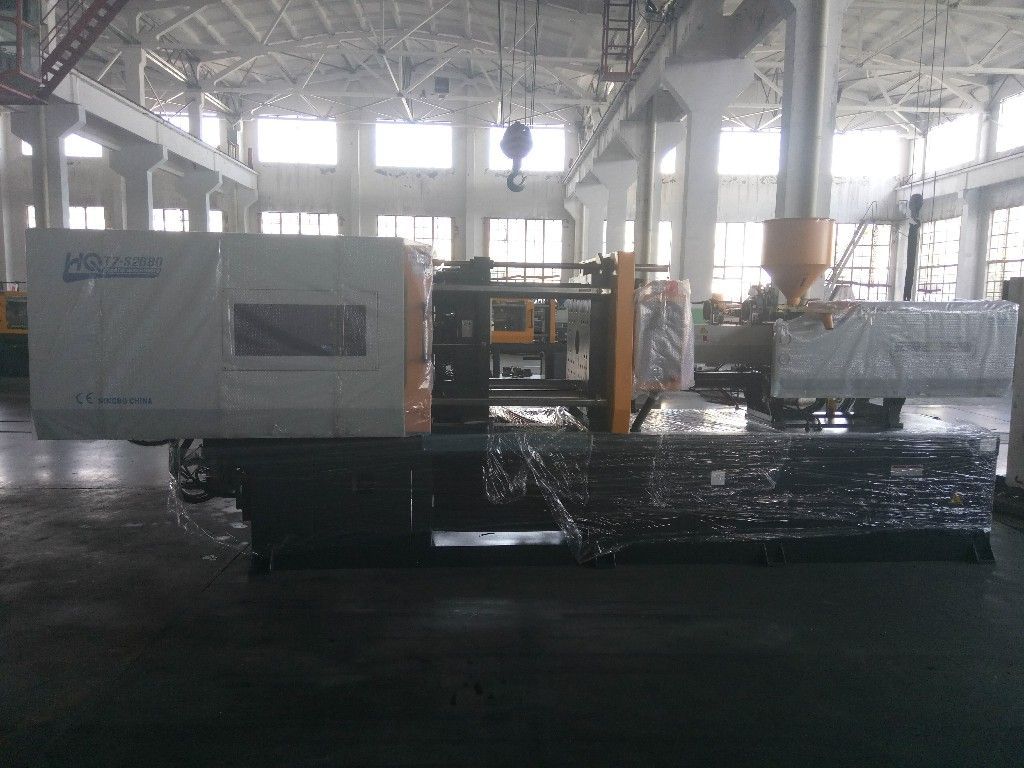

268 ton servomotor machine injecting 300 gr PET drum preform with help of three-in-one dehumidifier in customer factory.
HQT-PET serie PET Preform Injection Machine
——Special screw for PET material, with bigger L/D ratio, screw diameter ect, reduces acetaldehyde aldehyde content to meet food packaging standard, and makes sure preform to be completely transparent and bright.
——Special clamping and inject unit to meet PET products requirement.
| Item | Unit | HQT-280 PET |
| INJECTION UNIT | ||
| Screw Diameter | mm | 70 |
| Screw L/D Ratio | L/D | 22 |
| Shot Volume(Theoretical) | cm3 | 1116 |
| Injection Weight(PS) | G | 1180 |
| Plasticizing Capacity(PS) | g/s | 36.2 |
| Injection Rate | g/s | 341 |
| Injection Pressure | Mpa | 123 |
| Screw Speed | r/min | 200 |
| CLAMPING UNIT | ||
| Clamp Tonnage | KN | 2280 |
| Toggle Stroke | mm | 550 |
| Space Between Tie Bars | mm | 580×560 |
| Min.Max. Mould Height | mm | 220-570 |
| Ejector Stroke | mm | 140 |
| Ejector Tonnage | KN | 70 |
| Ejector Number | 9 | |
| OTHERS | ||
| System Pressure | （mpa） | 16 |
| Pump Motor Power | （kw） | 22 |
| Heater Power | （kw） | 14 |
| Machine Dimension(L×W×H) | m | 6.21×1.69×2.21 |
| Oil Tank Capacity | L | 613 |
| Machine Weight | Tonelada | 9.5 |
