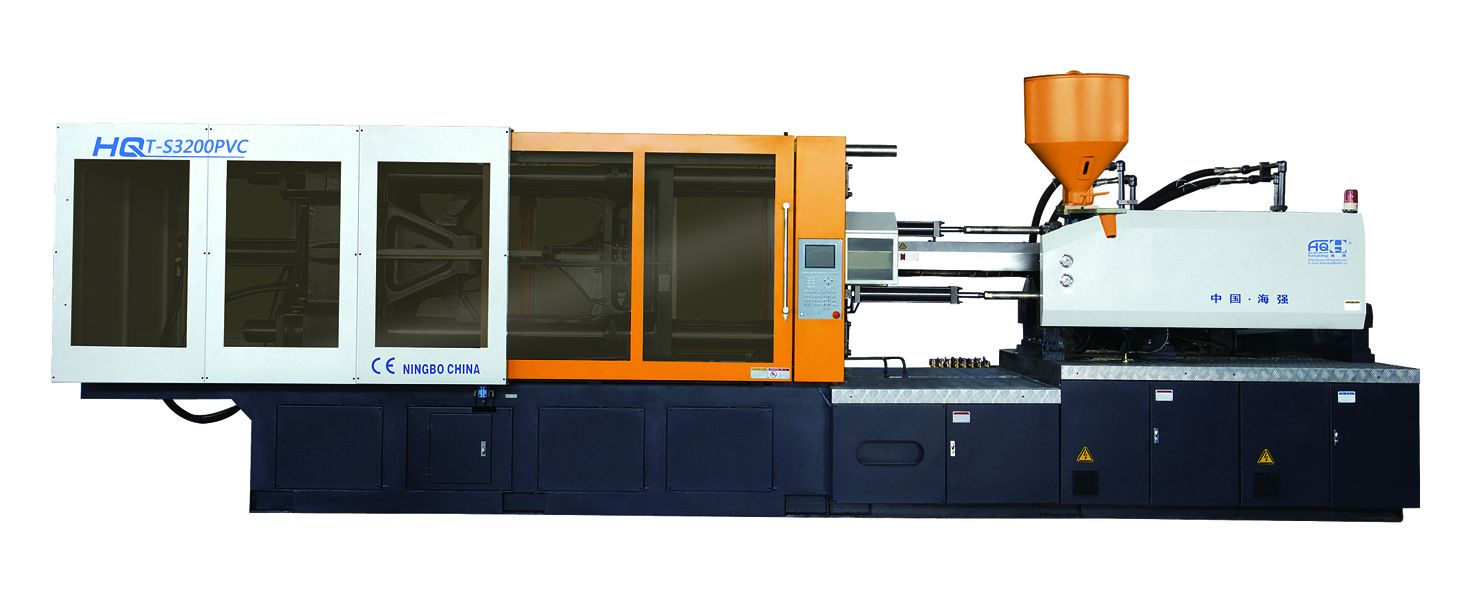

HQT-3200 PVC injection molding machine

HQT-3200 plastic injection machine exported to Kazakhstan, testing in our factory before exportation.

HQT-PVC Serie PVC Fitting Injection Machine

——Air cooling device with quick response and accurate temperature control, avoid degradation of PVC in barrel.

——Bimetal screw with high corrosion resistance and rigidity, ideal for PVC powder material.

——Extra spacious mould area, suitable for long core pulling and multi-core pulling

——Enlarged plasticizing motor and special injection system, make sure plasticization is complete and even.

Item	Unit	HQT-320
INJECTION UNIT		A	B	C
Screw Diameter	mm	60	65	70
Screw L/D Ratio	L/D	21.7	20	18.6
Shot Volume(Theoretical)	cm³	752	883	1024
Injection Weight(PS)	G	684	803	932
Plasticizing Capacity(PS)	g/s	34.8	38.6	42.0
Injection Rate	g/s	284	333	386
Injection Pressure	Mpa	190	162	140
Screw Speed	r/min	220
CLAMPING UNIT
Clamp Tonnage	KN	3200
Toggle Stroke	mm	570
Space Between Tie Bars	mm	640×640
Min.Max. Mould Height	mm	240-640
Ejector Stroke	mm	150
Ejector Tonnage	KN	70
Ejector Number		9
OTHERS
System Pressure	（mpa）	16
Pump Motor Power	（kw）	30
Heater Power	（kw）	18.5
Machine Dimension(L×W×H)	m	6.33×1.77×2.23
Oil Tank Capacity	L	734
Machine Weight	Tonelada	11.5

Related Tags : PVC fitting injection machine

Previous : first page Next : HTQ-3600 PVC injection molding machine
