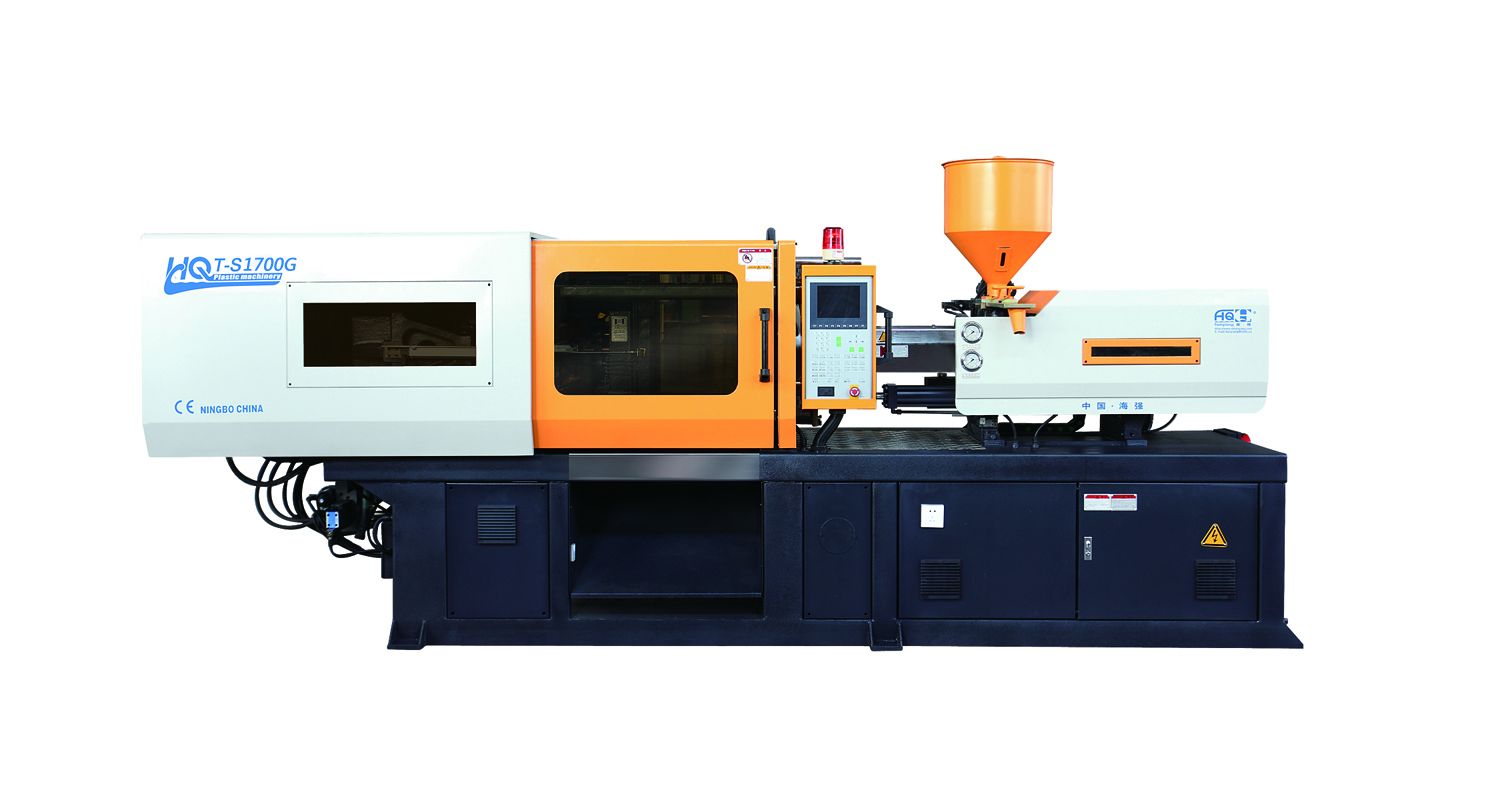

HQT 1700 G high speed thin wall injection machine

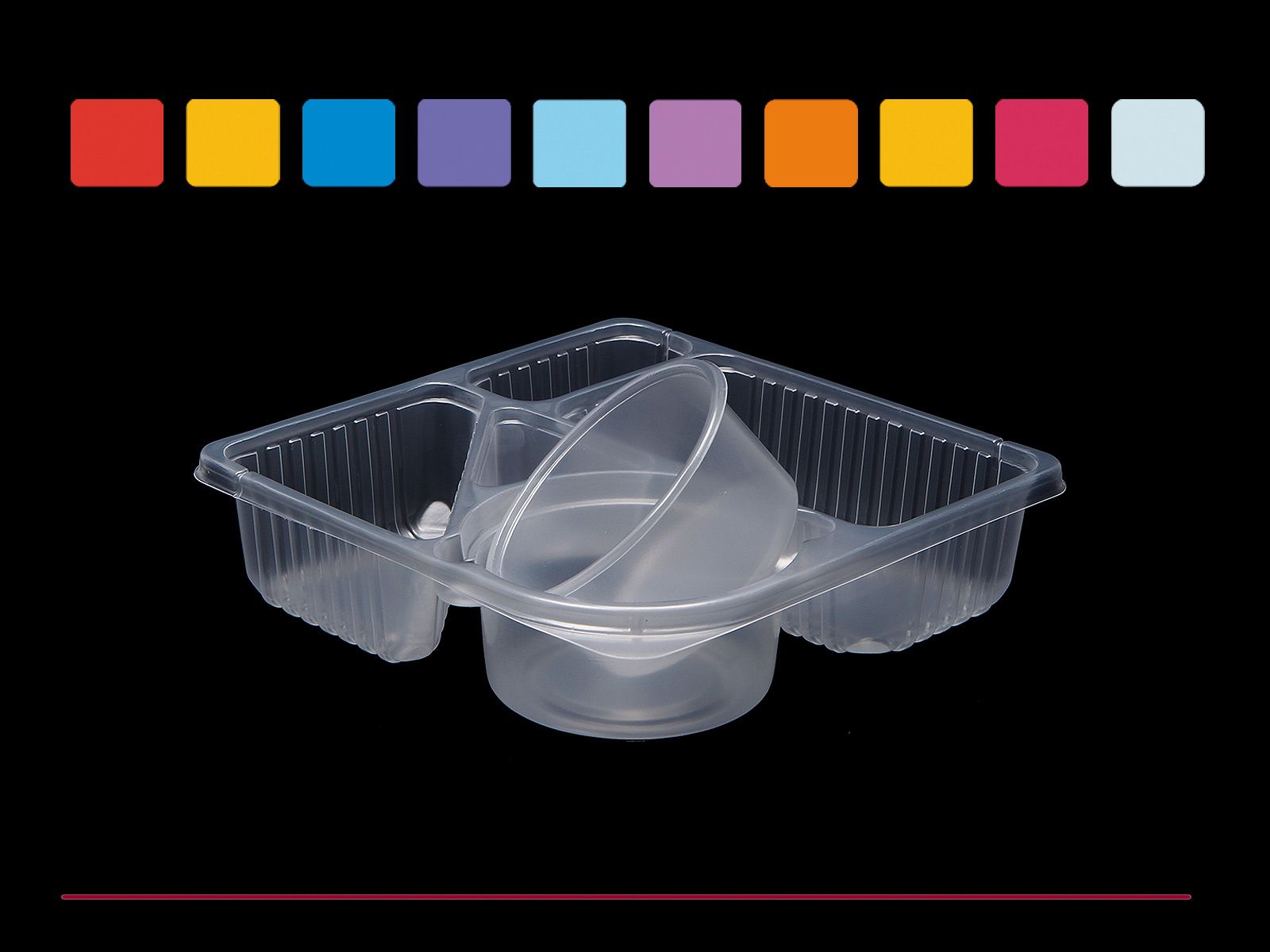

High speed machine working with 2 cavities disposible food container of 4.5 seconds production cycle.
high speed thin wall injection machine
HQT-G serie
——Clamping unit with improved rigidity meets the requirement of high injection spped and pressure, and extends the service life of mould.
——Hydraulic accumulator alocated with high quality proportional valves accelerates the injection velocity significantly.
——Fast injection rates and response assured by optimized hydraulic system.
——High precision control system can enhance the accuracy of movement, and make machine work reliably.
| Item | UNIT | HQT 170 G |
| INJECTION UNIT | ||
| Screw Diameter | mm | 43 |
| Screw L/D Ratio | L/D | 20 |
| Shot Volume(Theoretical) | cm3 | 350 |
| Injection Weight(PS) | g | 319 |
| Injection Rate | g/s | 160 |
| Injection Pressure | Mpa | 177 |
| Screw Speed | r/min | 225 |
| CLAMPING UNIT | ||
| Clamp Tonnage | KN | 1700 |
| Toggle Stroke | mm | 435 |
| Space Between Tie Bars | mm | 470×470 |
| Max.Mould Height | mm | 500 |
| Min.Mould Height | mm | 180 |
| Ejector Stroke | mm | 135 |
| Ejector Tonnage | KN | 50 |
| OTHERS | ||
| System Pressure | Mpa | 16 |
| Pump Motor Power | KW | 29 |
| Heater Power | KW | 15.5 |
| Machine Dimension(L×W×H) | m | 5.4x1.3x2.1 |
| Oil Tank Capacity | L | 300 |
| Machine Weight | T | 5.4 |
