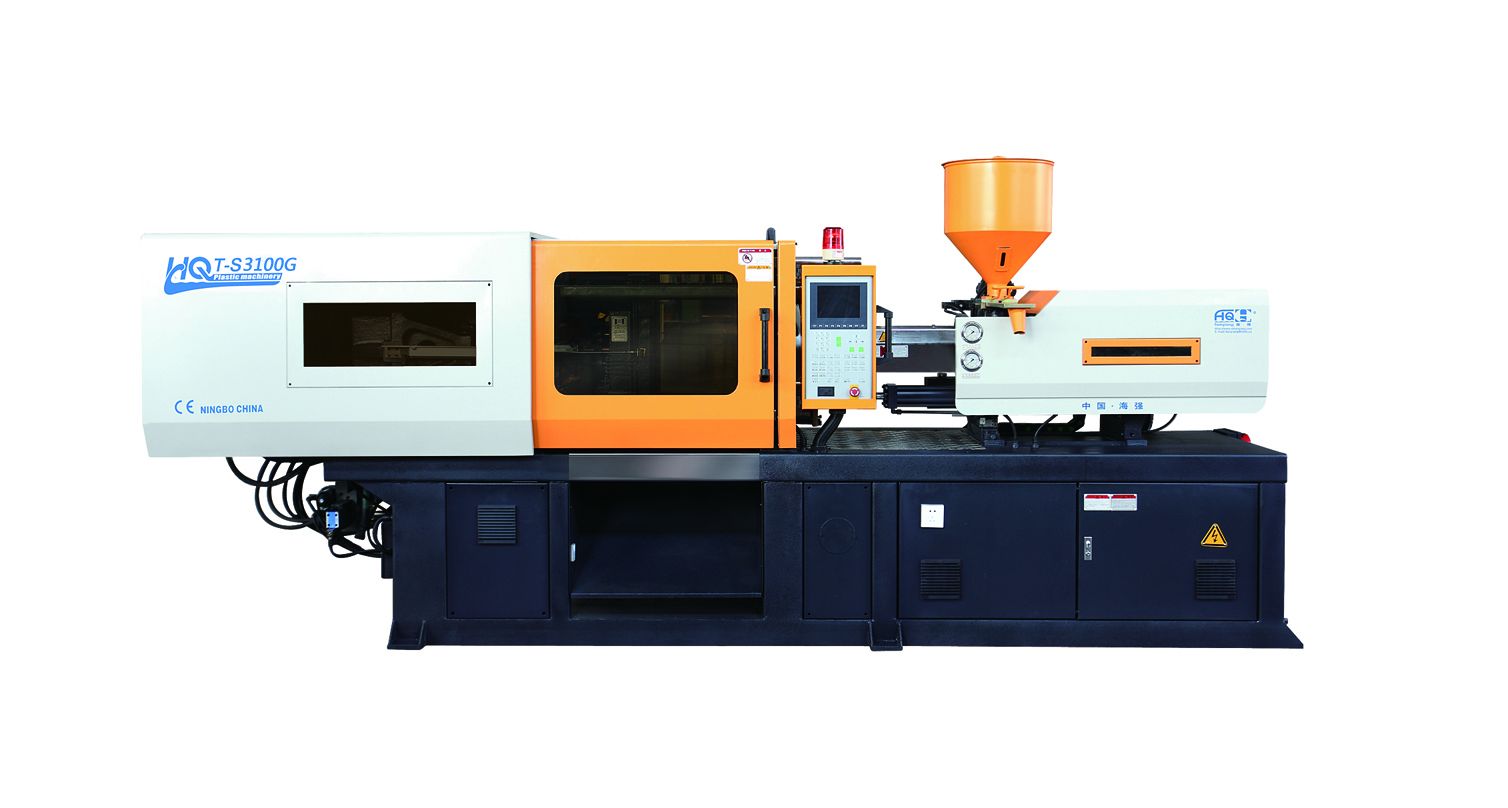

HQT 3100 G high speed thin wall injection machine
HQT-3500 G high speed machine in production with robot, suitable for thin wall and disposible plastic parts such as food container, cable ties, caps ect.
high speed thin wall injection machine
HQT-G serie
——Clamping unit with improved rigidity meets the requirement of high injection spped and pressure, and extends the service life of mould.
——Hydraulic accumulator alocated with high quality proportional valves accelerates the injection velocity significantly.
——Fast injection rates and response assured by optimized hydraulic system.
——High precision control system can enhance the accuracy of movement, and make machine work reliably.
| Item | UNIT | HQT 310 G |
| INJECTION UNIT | ||
| Screw Diameter | mm | 55 |
| Screw L/D Ratio | L/D | 22 |
| Shot Volume(Theoretical) | cm3 | 550 |
| Injection Weight(PS) | g | 503 |
| Injection Rate | g/s | 227 |
| Injection Pressure | Mpa | 169 |
| Screw Speed | r/min | 190 |
| CLAMPING UNIT | ||
| Clamp Tonnage | KN | 3100 |
| Toggle Stroke | mm | 590 |
| Space Between Tie Bars | mm | 630×630 |
| Max.Mould Height | mm | 830 |
| Min.Mould Height | mm | 250 |
| Ejector Stroke | mm | 150 |
| Ejector Tonnage | KN | 70 |
| OTHERS | ||
| System Pressure | Mpa | 16 |
| Pump Motor Power | KW | 49 |
| Heater Power | KW | 30 |
| Machine Dimension(L×W×H) | m | 6.9x1.5x2.4 |
| Oil Tank Capacity | L | 390 |
| Machine Weight | T | 9.5 |
