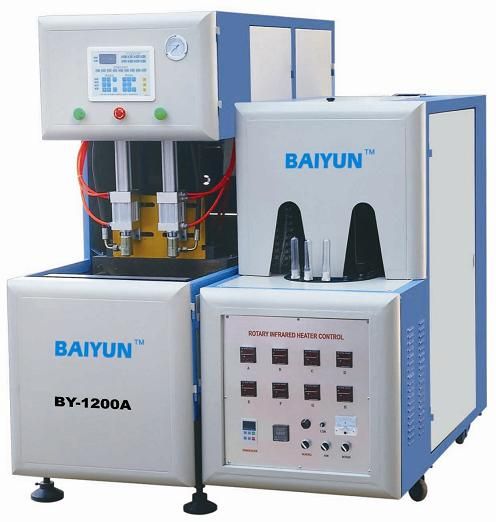

BY-1200 A semi auto blow machine
For all kinds of PET bottle, from 20 ml to 2000 ml , widely used for mineral water, soft drift and cosmetic containers.
It has PLC system with high efficiency. PID temperature precise control system and infraray heater
Improved mechanical structure with more spacious mold area and providing stronger clamping force, and design of high pressure protection of mold.
Fewer noise in operation and easy maintainence
| MODEL | BY-1200 A | |
| CATEGORY | Machine Type | Semi-automatic Blow Molding Machine |
| Theoretical output | __ | 800-1000pcs/h(500ml) |
| 500-700pcs/h(1500ml) | ||
| MOULD | Max. Container Volume | 1500ml (2 cavities) |
| cavities no. | 1or2 cavities | |
| Max. Container Diameter | 150MM | |
| Max. Container Height | 430MM | |
| Mould plate dimension (L*H) | 490*420MM | |
| Mould thickness | 300MM | |
| Mould opening stroke | 170MM | |
| Max. Stretching stroke | 450MM | |
| Clamping force | 280KN | |
| ELECTRICAL | Power | 220~380V , 3φ , 50~60Hz |
| Heating Power | 7.6KW | |
| Working Pressure | 0.8Mpa | |
| Blowing Pressure | 3.0Mpa | |
| MACHINE | Machine Dimension (L*W*H) | 1700*610*1800MM |
| Pre-heater Dimension (L*W*H) | 1800*700*1500MM | |
| Machine weight | 850Kg | |
| pre-heater weight | 200Kg | |
| AUCHILIARY DEVICES | 1 set High pressure air compressor | 1.2M3/3.0Mpa/15Kw |
| 1 set Air dryer | 1.0M3/3.0Mpa/3.75KW | |
| 2 Pics Air filter | 1.0m3/3.0Mpa |
