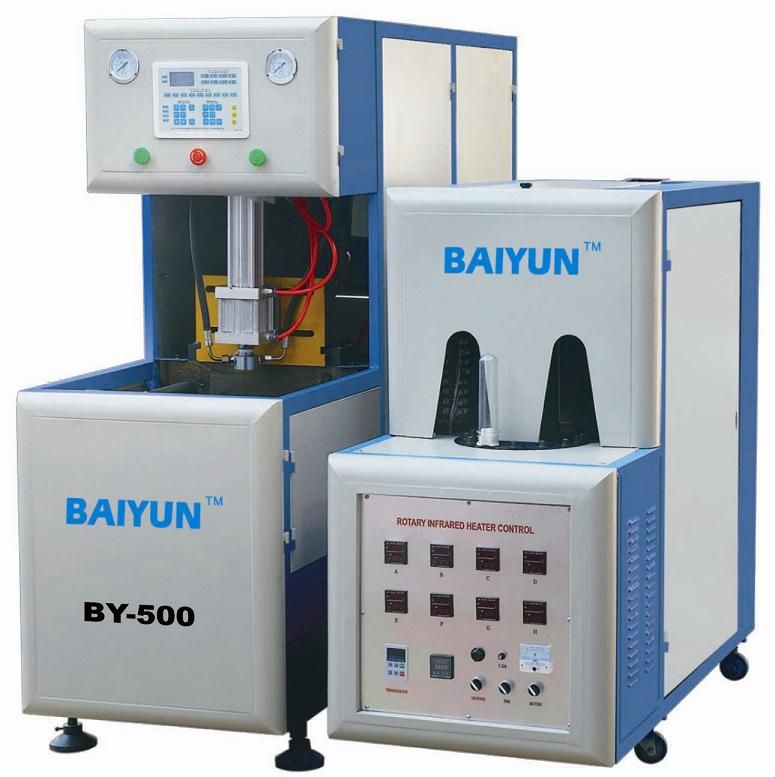

BY-500 semi auto blow machine
For all shapes of PET bottle, Ideal option for container of oil, honey, mineral water ect. from 1 to 5 L.
Safe, Fast and highly efficient. Adopt the new type double bend arm and four pull rod-clamping structure, strong clamping force. advanced design of air controlling system.
| MODEL | BY-500 | |
| CATEGORY | Machine Type | Semi-automatic Blow Molding Machine |
| Theoretical output | __ | 350-500pcs/h(5000ml) |
| MOULD | Max. Container Volume | 5000ml(1 Cavities) |
| cavities no. | 1or2 cavities | |
| Max. Container Diameter | 230MM | |
| Max. Container Height | 430MM | |
| Mould plate dimension (L*H) | 490*470MM*70MM | |
| Mould thickness | 300MM | |
| Mould opening stroke | 260MM | |
| Max. Stretching stroke | 450MM | |
| Clamping force | 180KN | |
| ELECTRICAL | Power | 220~380V , 3φ , 50~60Hz |
| Heating Power | 15KW | |
| Working Pressure | 0.8Mpa | |
| Blowing Pressure | 3.0Mpa | |
| MACHINE | Machine Dimension (L*W*H) | 1900*610*1700MM |
| Pre-heater Dimension (L*W*H) | 1800*550*1500MM | |
| Machine weight | 550Kg | |
| pre-heater weight | 300Kg | |
| AUCHILIARY DEVICES | 1 set High pressure air compressor | 1.2M3/3.0Mpa/15Kw |
| 1 set Air dryer | 1.0M3/3.0Mpa/3.75KW | |
| 2 Pics Air filter | 1.0m3/3.0Mpa |
