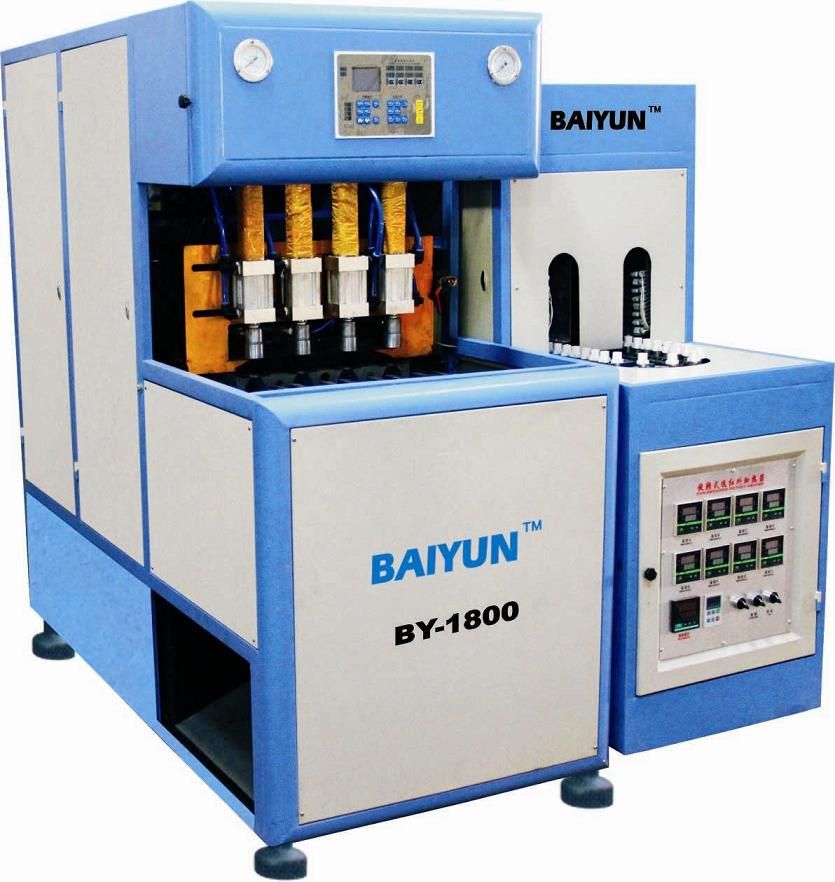

BY-1800 semi auto blow machine
Suitable to make any shape of PET bottle from 250 ml to 1000 ml,
including those for all kinds of water,wine,drink,soybeen,vineger,and pesticide depending on needs of customer.
Adopt the new type double bend arm and four pull rod-clamping structure, strong clamping force.advanced design of air controlling system.
| MODEL | BY-1800 | |
| CATEGORY | Machine Type | Semi-automatic Blow Molding Machine |
| Theoretical output | __ | 2000 pcs/h |
| MOULD | Max. Container Volume | 1L |
| cavities no. | 1or4 cavities | |
| Max. Container Diameter | 100MM | |
| Max. Container Height | 330MM | |
| Mould plate dimension (L*H) | 490*420MM*70MM | |
| Mould thickness | 300MM | |
| Mould opening stroke | 245MM | |
| Max. Stretching stroke | 450MM | |
| Clamping force | 180KN | |
| ELECTRICAL | Power | 220~380V , 3φ , 50~60Hz |
| Heating Power | 7.6KW | |
| Working Pressure | 0.8Mpa | |
| Blowing Pressure | 3.0Mpa | |
| MACHINE | Machine Dimension (L*W*H) | 1800*610*1800MM |
| Pre-heater Dimension (L*W*H) | 2300*700*1500MM | |
| Machine weight | 850Kg | |
| pre-heater weight | 300Kg | |
| AUCHILIARY DEVICES | 1 set High pressure air compressor | 1.2M3/3.0Mpa/15Kw |
| 1 set Air dryer | 1.0M3/3.0Mpa/3.75KW | |
| 2 Pics Air filter | 1.0m3/3.0Mpa |
