Your Position: Home > Products > PET blowing machine >

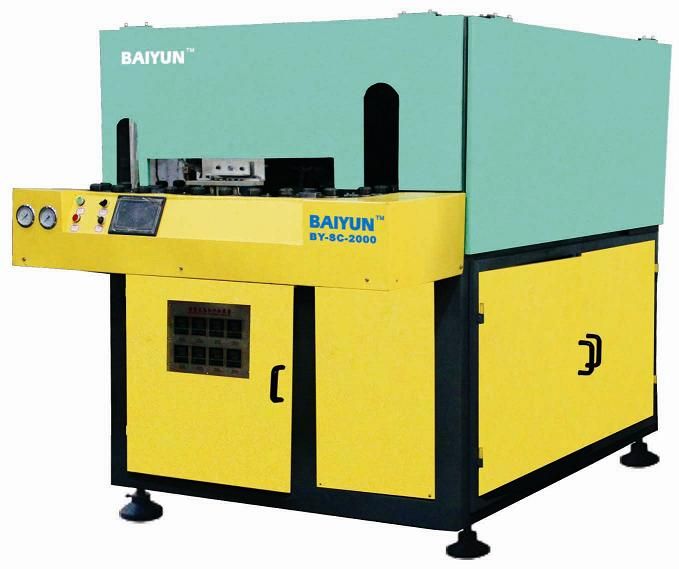

BY-SC2000 manual feeding blow machine
For all kinds of PET open mouth jar , from 20 ml to 2000 ml , widely used for mineral water, soft drift and cosmetic containers. labor saving and easy to operate, one worker is enough for the production.
It has PLC system with high efficiency. PID temperature precise control system and infraray heater
Improved mechanical structure with more spacious mold area and providing stronger clamping force, and design of high pressure protection of mold.
Fewer noise in operation and easy maintainence
| MODEL | BY-SC-2000 | |
| CATEGORY | Machine Type | Manual Preform Feeding Auto blowmolding machine |
| Theoretical output | __ | 2000 pcs/h |
| MOULD | Max. Container Volume | 2000ml(2 cavities) |
| cavities no. | 1or2 cavities | |
| Max. Container Diameter | 150MM | |
| Max. Container Height | 430MM | |
| Mould plate dimension (L*H) | 490*420MM | |
| Mould thickness | 300MM | |
| Mould opening stroke | 170MM | |
| Max. Stretching stroke | 450MM | |
| Clamping force | 280KN | |
| ELECTRICAL | Power | 220~380V , 3φ , 50~60Hz |
| Heating Power | 11KW | |
| Working Pressure | 0.8Mpa | |
| Blowing Pressure | 3.0Mpa | |
| MACHINE | Machine Dimension (L*W*H) | 1700*610*1800MM |
| Pre-heater Dimension (L*W*H) | —— | |
| Machine weight | 1500Kg | |
| pre-heater weight | —— | |
| AUCHILIARY DEVICES | 1 set High pressure air compressor | 1.0M3/3.0Mpa/15Kw |
| 1 set Air dryer | 1.0M3/3.0Mpa/3.75KW | |
| 2 Pics Air filter | 1.0m3/3.0Mpa |
