HQT-1500 TPU injection molding machine

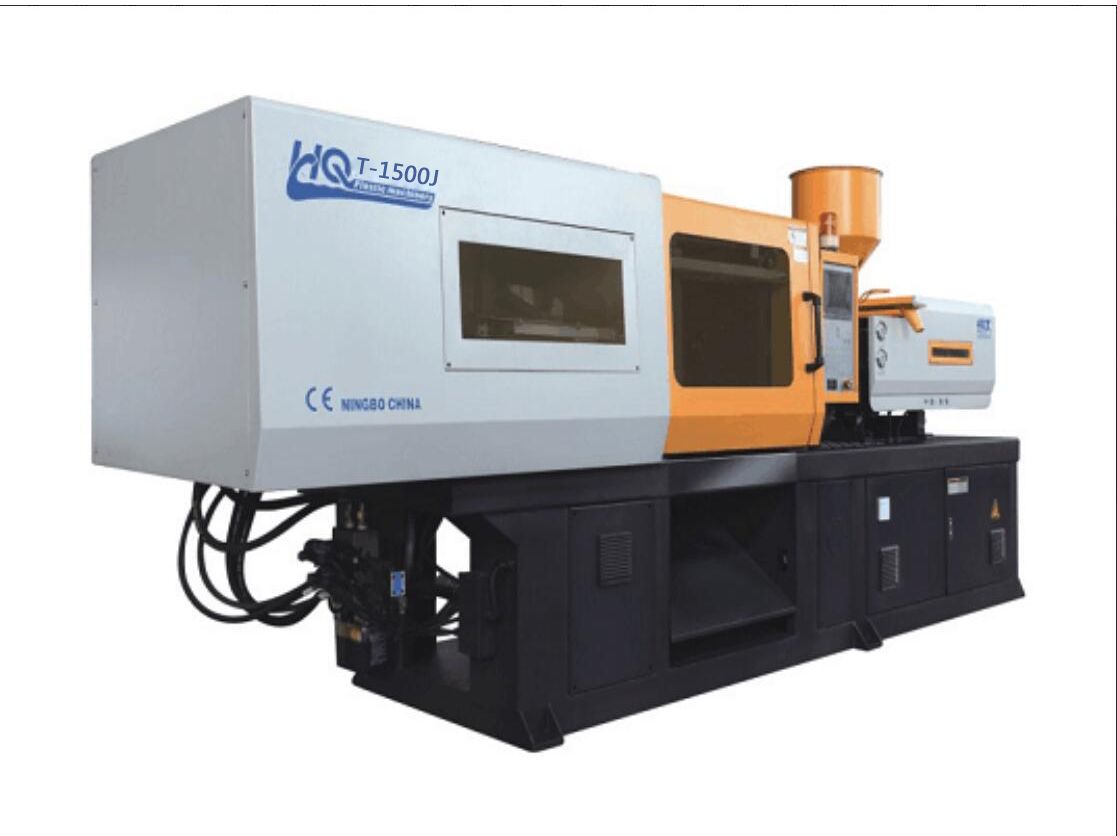

HQT-1500 seromotor injection molding machine in testment before deliver to customer
HQT-J serie High Precision Injection Machine
—— Adopt motor and pump of large power, increasing injection speed and precision.
—— Improved oil circuit , enables quick and accurate response of action
—— Special screw with excellent plasticizing capacity, guarantees the best moulding effect.
—— Various unique designs meet perfectly the requirements of fabrication such as high precision, short forming time, thin wall ect.

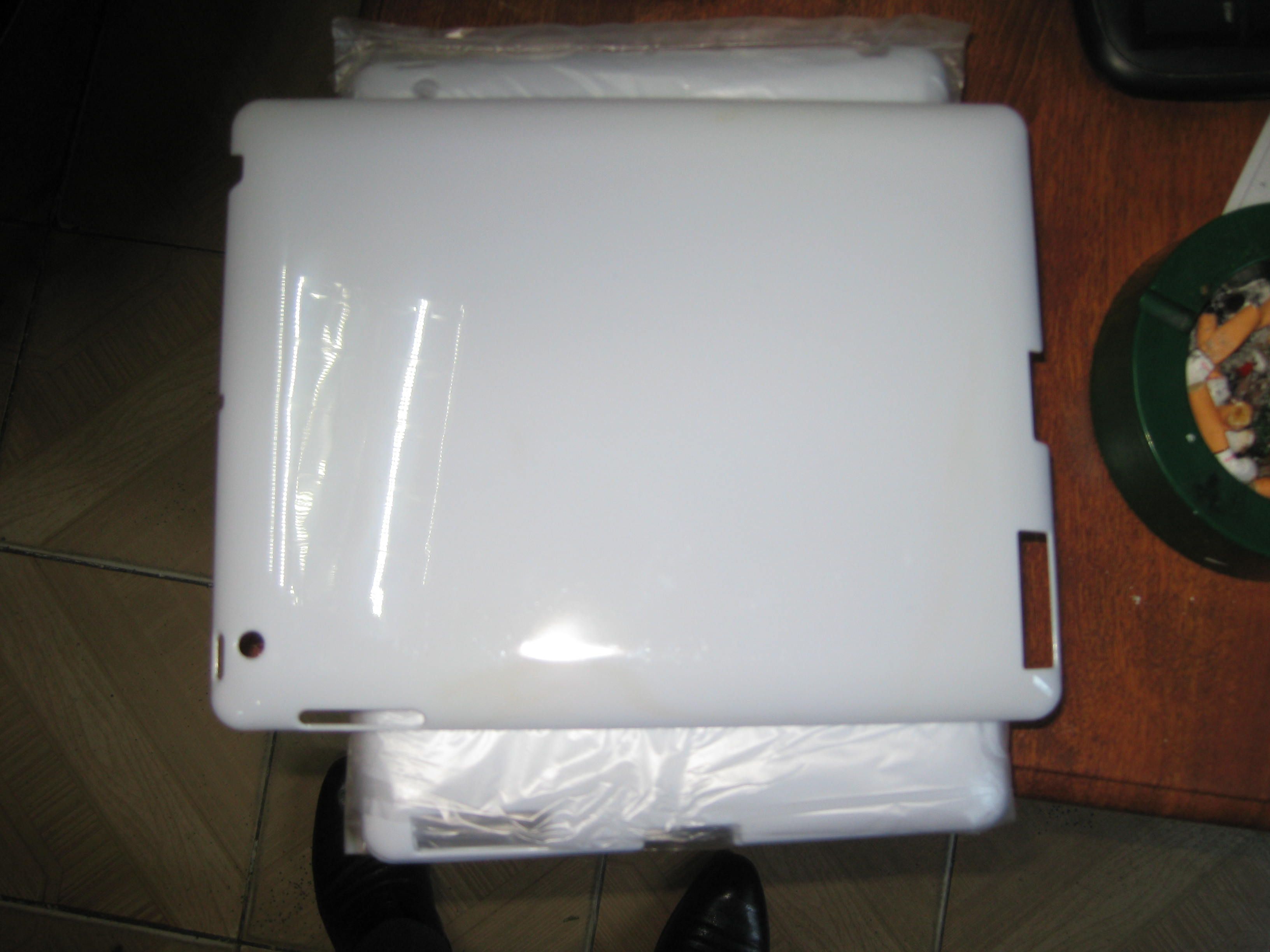

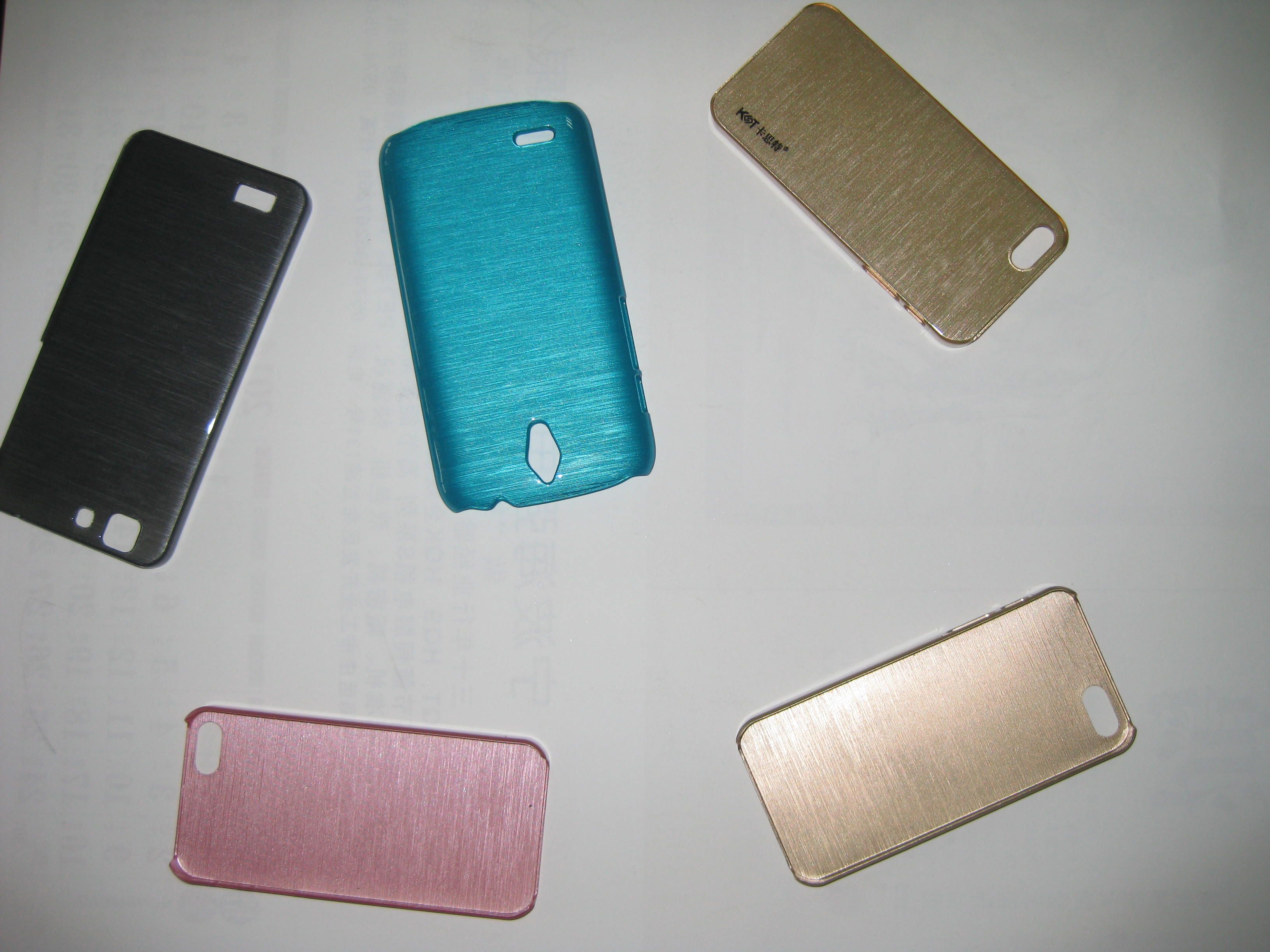

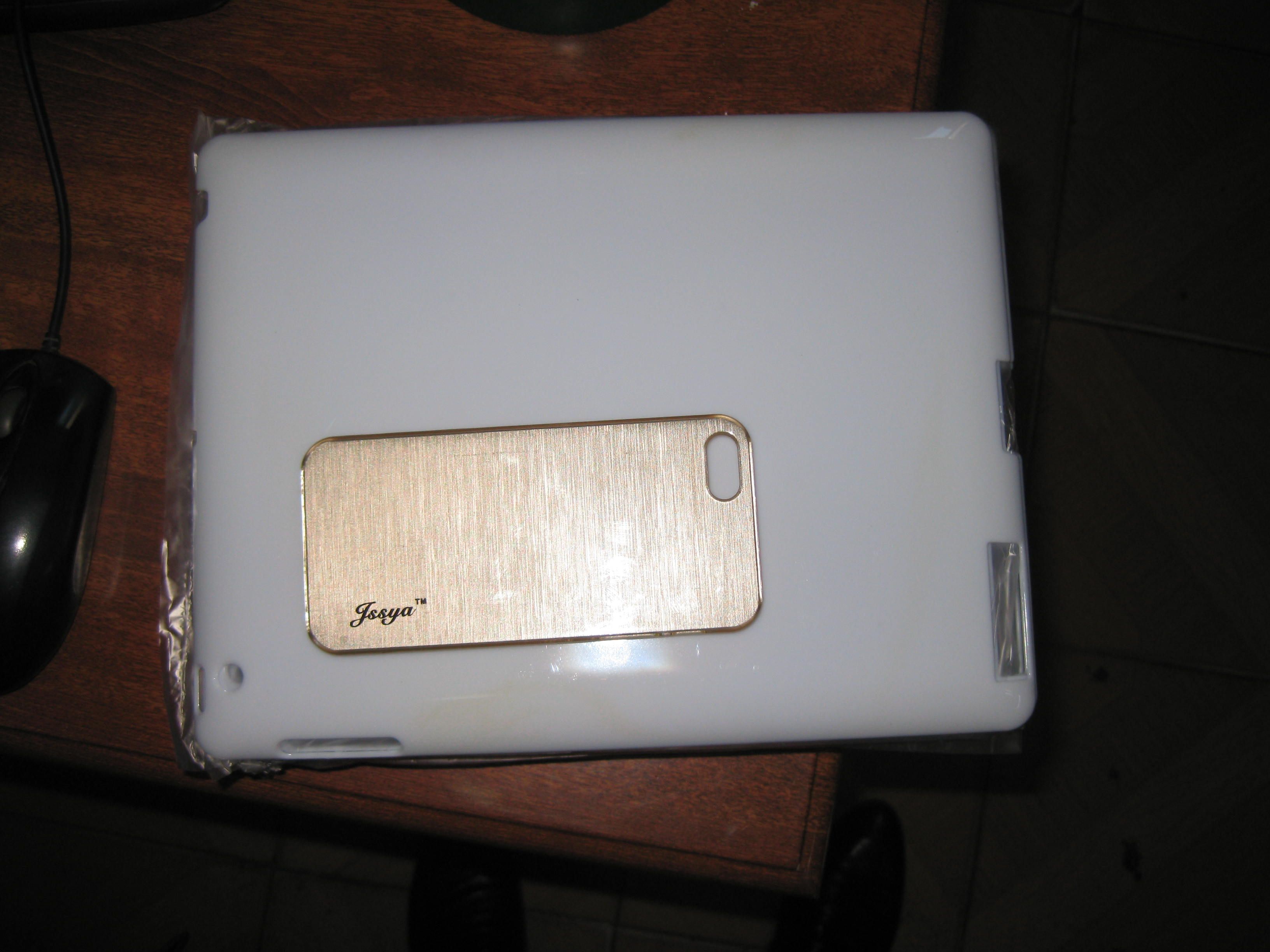

Product Show ( widely used in electric gadget industry such as cellphone cases ect. )
| Item | Unit | HQT1500 | ||
| INJECTION UNIT | ||||
| Screw Diameter | mm | 40 | ||
| Screw L/D Ratio | L/D | 21 | ||
| Shot Volume(Theoretical) | cm3 | 253 | ||
| Injection Weight(PS) | g | 230 | ||
| Plasticizing Capacity(PS) | g/s | 18.0 | ||
| Injection Rate | g/s | 113 | ||
| Injection Pressure | Mpa | 202 | ||
| Screw Speed | r/min | 235 | ||
| CLAMPING UNIT | ||||
| Clamp Tonnage | KN | 1500 | ||
| Toggle Stroke | mm | 390 | ||
| Space Between Tie Bars | mm | 430×430 | ||
| Max.Mould Height | mm | 450 | ||
| Min.Mould Height | mm | 150 | ||
| Ejector Stroke | mm | 120 | ||
| Ejector Tonnage | KN | 38 | ||
| Ejector Number | pc | 5 | ||
| OTHERS | ||||
| System Pressure | Mpa | 16 | ||
| Pump Motor Power | KW | 15 | ||
| Heater Power | KW | 9.3 | ||
| Machine Dimension(L×W×H) | m | 4.44×1.45×1.89 | ||
| Oil Tank Capacity | L | 263 | ||
| Machine Weight | T | 4.8 | ||
